As manufacturing technology continues to advance, CNC machining and 3D printing (additive manufacturing) have become two highly recognized production methods. Each has distinct characteristics suited to different applications. This article aims to clearly outline the features, connections, and differences between the two, and provide practical guidance for real production needs.
1.CNC Machining: The Foundation of Precision and Reliability
CNC machining is a subtractive manufacturing process that uses pre-programmed instructions to cut, drill, and mill materials such as metals and plastics. Its core strengths lie in its precision, surface quality, and broad material compatibility.
Precision and Quality:
CNC machines achieve micrometer-level accuracy, ensuring parts meet strict dimensional and geometric requirements—critical for aerospace, medical devices, and other high-end industries. They also deliver excellent surface finishes, including mirror-grade quality when required for functional components.
Materials and Strength:
CNC machining supports virtually all engineering materials, including metals, plastics, and composites. Finished parts exhibit dense microstructures, offering high mechanical strength and durability.
Efficiency and Consistency:
Once programmed, CNC machining enables automated, efficient production with high consistency and repeatability across large batches.
Mature and Reliable:
As a well-established technology, CNC machining provides a complete process chain with strong predictability and quality control, making it the preferred method for reliable mass-produced components.

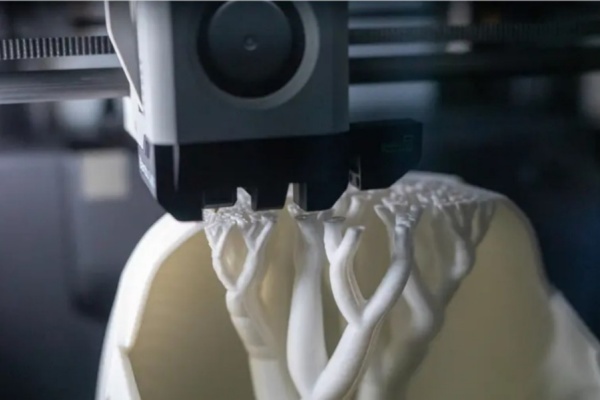

2.3D Printing: Flexibility and Design Freedom
3D printing builds objects layer by layer and is known for its design versatility and rapid prototyping capability.
Complex Geometries:
Its greatest advantage is the ability to create complex internal structures, thin walls, and irregular shapes that traditional machining cannot easily achieve.
Rapid Prototyping and Customization:
It produces physical parts directly from digital models without tooling, greatly shortening early development cycles—ideal for customization and small trial runs.
High Material Utilization:
As an additive process, it generates minimal material waste, especially for highly complex shapes.
Limitations:
However, 3D-printed parts typically have lower precision and rougher surfaces with visible layer lines, often requiring post-processing. Material options, while expanding, remain more limited than CNC machining, and mechanical properties such as strength and temperature resistance are often inferior to forged or machined parts. In mass production, long build times and high unit costs become major disadvantages.
- Relationship Between the Two: Complementary, Not Competitive
Despite different principles, the two technologies increasingly complement each other in modern manufacturing.
Process Complementarity:
3D printing is often used for quick concept validation and functional prototypes, while CNC machining handles small-batch trials or final precision production.
Hybrid Manufacturing:
A growing trend combines additive and subtractive methods—printing complex shapes first, then machining critical surfaces to achieve high accuracy and finish.
Shared Goal:
Both support the broader move toward digital and intelligent manufacturing, enhancing flexibility and reducing time-to-market.
- Key Differences: Basis for Making the Right Choice
Understanding their fundamental differences is essential for selecting the appropriate method.
| Comparison Dimension | CNC Machining | 3D Printing |
| Technical Principle | Subtractive manufacturing; removes material through cutting. | Additive manufacturing; builds parts by layered deposition. |
| Material Range | Extremely broad—covers most engineering materials. | Limited—mainly specific plastics, resins, and certain metal powders. |
| Precision & Surface Quality | Very high precision (micron level) with excellent surface finish. | Lower precision (typically ±0.1 mm) with coarse surfaces and layer lines. |
| Mechanical Performance | High strength and durability due to dense material structure. | Highly dependent on material and process; anisotropy is common; strength often lower. |
| Economics | Ideal for medium- to large-scale production; costs decrease with volume. | Suitable for single parts, small batches, or complex prototypes; inefficient and costly for mass production. |
| Design Constraints | Limited by tool geometry and machining accessibility (e.g., internal sharp corners). | Minimal design constraints; enables extremely complex geometries. |
- Conclusion and Recommendations
Both CNC machining and 3D printing offer unique advantages. For most industrial applications requiring reliability, high precision, superior surface quality, and economic efficiency in batch production, CNC machining remains the foundational solution.
Recommendations:
- Clarify priority requirements:
For tight tolerances, smooth surfaces, strong mechanical performance, or specific engineering materials, CNC machining is the more dependable choice. - Use 3D printing rationally:
Treat it as a powerful tool for prototyping, design validation, and ultra-low-volume customization—not a direct replacement for precision machining. For final or critical parts, evaluate performance carefully. - Combine both approaches:
Accelerate early development with 3D printing, then transition to CNC machining for production to balance speed and quality.
The Novitas team, as a specialized CNC customized parts supplier, focuses deeply on CNC machining, supported by mature processes and strict quality control systems. We are committed to delivering high-precision, high-quality, and highly consistent parts. For customers who value intrinsic product quality and long-term stability, professional machining solutions remain the most trustworthy choice. If you have any confusion, please feel free to contact us. （WhatsApp ID: +86 190 2084 5766）
