Notes on Solvent Evaporation and Particle Control

In precision coating projects, discussions often focus on equipment accuracy, coating methods, or slurry formulations. Engineers may debate whether slot die coating, gravure coating, or other processes are more suitable for a given application.

In practice, however, long-term stability is often influenced by more basic factors.

Two issues appear frequently in real production environments:

• solvent evaporation
• particle contamination

Both may look like workshop management topics at first glance. Yet on many coating lines, they influence process stability as much as the equipment itself.

The following observations come from common situations seen in coating operations.

Solvent Evaporation

Whenever solvent-based systems are used, evaporation is unavoidable. Besides affecting the workshop atmosphere, evaporation can also influence the coating process itself.

On some coating lines, engineers notice a familiar pattern. After startup the coating runs smoothly, but after a period of operation, edge stability begins to fluctuate and process parameters need adjustment. In some cases, solvent evaporation is one of the underlying causes.

Different coating methods expose very different areas of liquid to the surrounding environment.

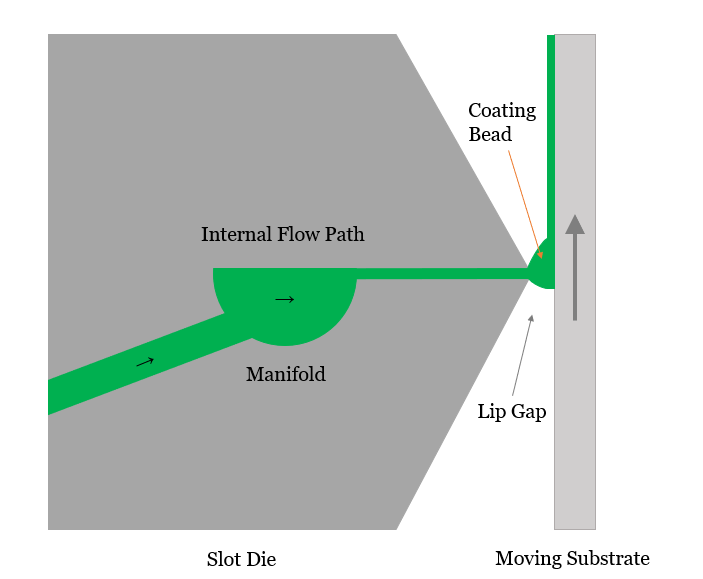

In slot die systems, coating liquid is delivered through sealed pipelines and distributed inside enclosed internal channels. The liquid is mainly exposed to air at the coating bead formed between the die lips and the moving substrate.

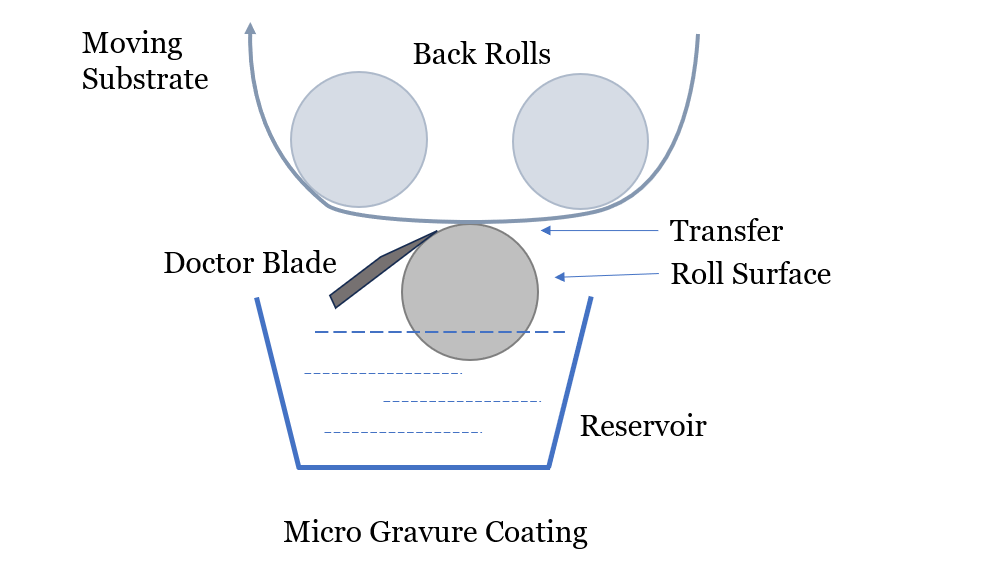

Roll-based coating methods often operate differently. Liquid typically circulates in an open reservoir and transfers through roll surfaces before reaching the substrate. As a result, a larger portion of liquid is exposed to the surrounding environment.

A simplified comparison looks like this:

Item	Slot Die	Micro-Gravure
Liquid path	pipeline + internal channel	reservoir + roll surface
Exposed liquid region	mainly coating bead	reservoir, roll surface, transfer zone
Solvent exposure area	relatively small	relatively larger

When volatile solvents are used, larger exposed areas generally make evaporation control more difficult.

Of course, equipment design is only part of the picture. Ventilation layout, solvent recovery, and operational practices all play important roles.

Coating Bead Stability

In many precision coating processes, thickness stability is closely related to the behavior of the coating bead.

Once the liquid leaves the coating equipment, it forms a bead between the coating head and the moving substrate. The region is small, but its influence on coating stability is significant.

Changes in evaporation conditions may alter the local liquid behavior within this bead. When that happens, engineers may observe:

• variation in bead length
• reduced edge stability
• a narrower coating window

These changes usually develop gradually during continuous operation rather than appearing immediately.

For this reason, engineers working with precision coating lines often pay close attention to environmental conditions

near the coating zone.

Solvent Evaporation and the Coating Window

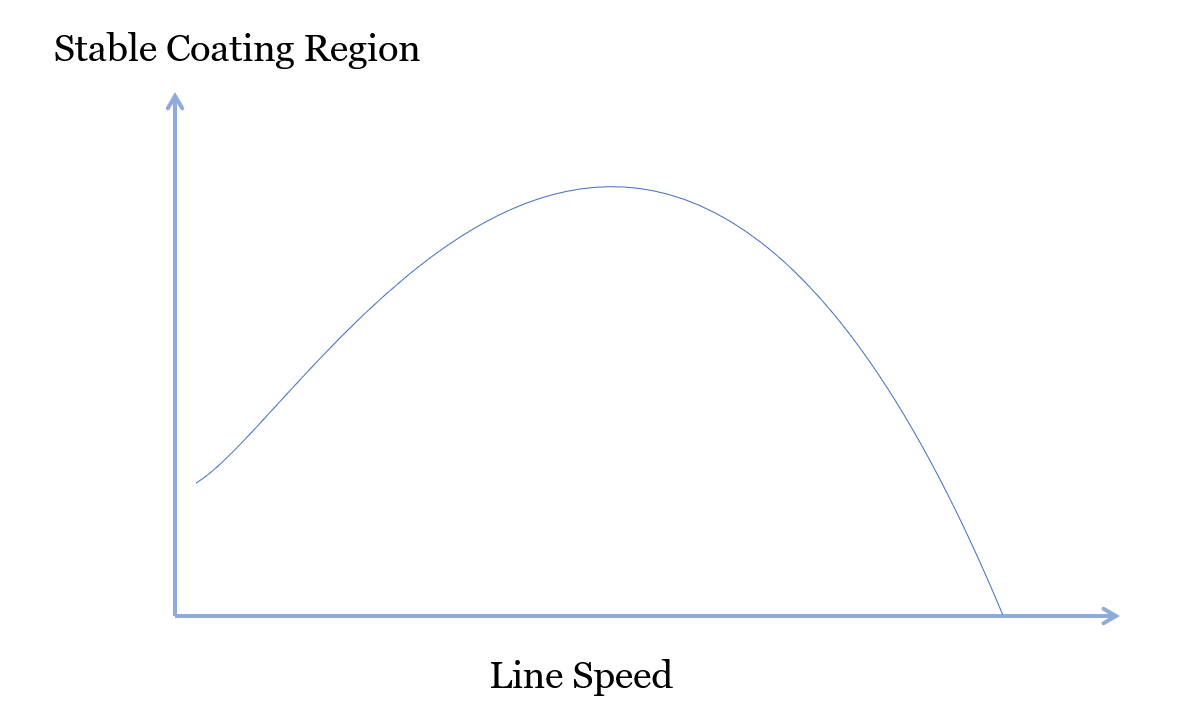

In continuous coating operations, engineers frequently refer to the coating window. The term describes the range of process parameters within which coating can run stably, including line speed, flow rate, and coating gap.

In practice, the coating window is not always constant. Solvent evaporation can shift it.

When evaporation rates change, the rheological state of the liquid in the coating bead may change as well. In systems using volatile solvents, variations in airflow or temperature can increase evaporation near the coating bead.

Over time, this may narrow the coating window.

The change does not always appear as an obvious defect. Instead, the process may gradually become more sensitive:

• conditions that were stable before become harder to maintain
• edge stability decreases
• small adjustments in speed or flow rate have larger effects

For this reason, some coating lines treat evaporation as part of coating window management. Stabilizing airflow, temperature, and local conditions around the coating unit often helps maintain a stable process.

Particle Contamination

Particle contamination is another common challenge in precision coating.

Particles can originate from several sources:

• airborne particles in the workshop
• solid particles in raw materials
• wear particles from equipment
• residues generated during production

Different coating systems show different characteristics in this regard.

For instance, roll-based coating systems may generate wear particles where the doctor blade contacts the roll surface. Over long operating periods, these particles may enter the coating region and cause surface defects.

In slot die systems, coating liquid remains inside enclosed internal channels before reaching the coating bead. This can reduce the chance of external particles entering the liquid flow.

Still, particle control in real production environments depends largely on operational management, including filtration, equipment cleaning, and workshop cleanliness.

Workshop Environment

Environmental conditions around the coating area are sometimes underestimated.

Several common factors can influence coating stability:

Factor	Possible Influence
airflow velocity	coating bead stability
airborne particles	surface defects
temperature and humidity	slurry rheology
VOC concentration	solvent evaporation rate

In high-speed coating operations, strong airflow near the coating zone may visibly affect bead behavior.

For this reason, many precision coating lines carefully manage the environment around the coating unit.

Equipment Considerations

Different coating technologies are suitable for different applications.

Roll-based coating methods are widely used in low-viscosity and high-speed processes. Slot die coating is often preferred when stable thickness control and continuous production are required.

In many projects, however, coating stability depends on more than the equipment alone. Process understanding, material stability, and environmental control all play a role.

Experienced engineers often view coating performance as the result of a complete system rather than a single component.

Conclusion

Precision coating is rarely determined by equipment alone. In most cases it is a system-level engineering task.

Solvent evaporation, particle contamination, and environmental management all influence coating stability. Managing these factors together is often essential for stable production.

As new energy materials and functional films continue to develop, the demand for stable coating environments is becoming increasingly important.

For projects involving customized slot die coating heads or precision machined components, please feel free to contact us.
